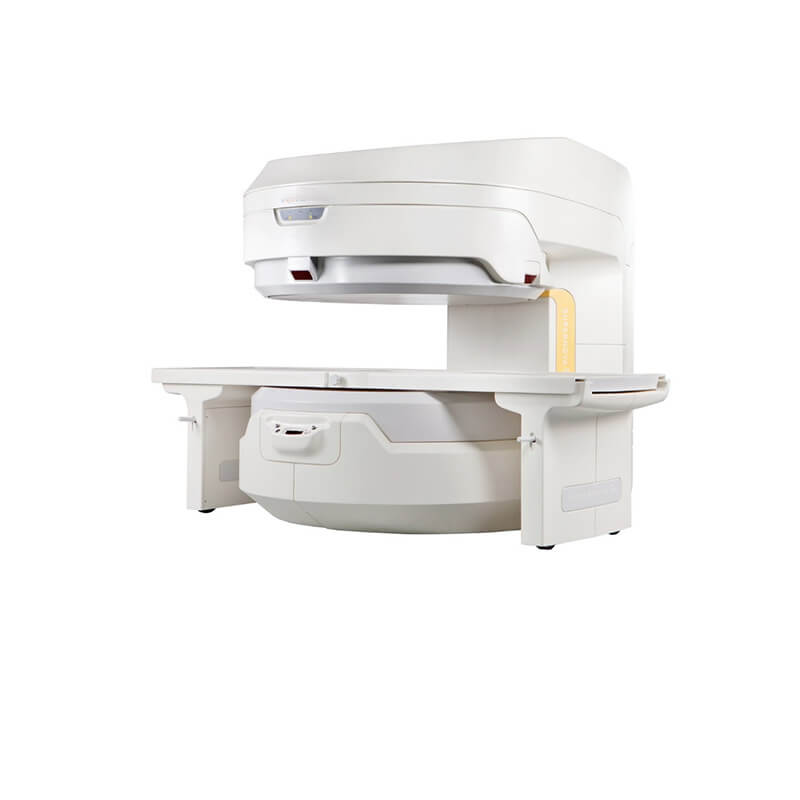

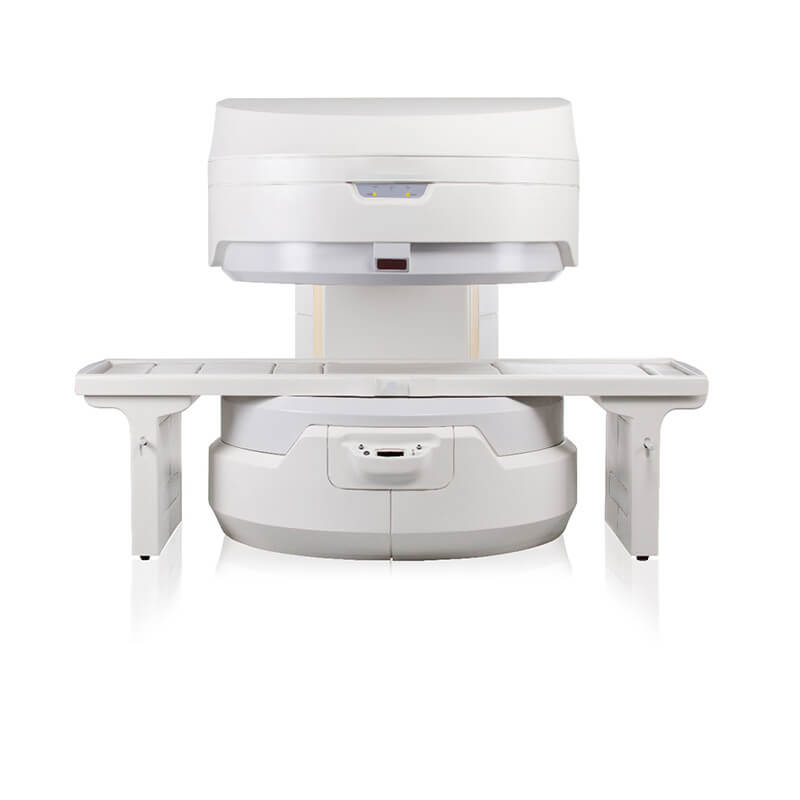

0.35T C-Shaped Animal MRI Machine Uzzdbc-013

Technical Parameter:

1. Magnet :

• Magnet Field strength 0.35 T
• Homogeneity ＜35 ppm(peak-peak) in 40cm DSV (Shimming of magnetic plates and first-order shimming of gradient coils)
• 5GS line <2.7m
• Patient Gap(Cover to cover): 380mm in height
• Magnet Size: 1875mm* 1340mm*1450mm（Length*Width*Height）
• Magnet weight: 13 tons

2. Gradient amplifier Load voltage: 300V, Max current: 250A
3. TX coil: Plate-type QD TX coil
4. RX coil:

• PA D11 pet coil
• PA D18 pet coil
• PA D24 pet coil

5. RF amplifier:6 kW

6. Scan control unit (Spectrometer):4-channel receive

7. Computer system: LCD Monitor and DICOM 3.0 printer interface(Can be remotely)

8. Operation software: Supernova Software Package

9. Manual Examination Bed:

• Load capacity 100Kg
• Overall length of bed: 1600 mm (with extension plate to 1900 mm)
