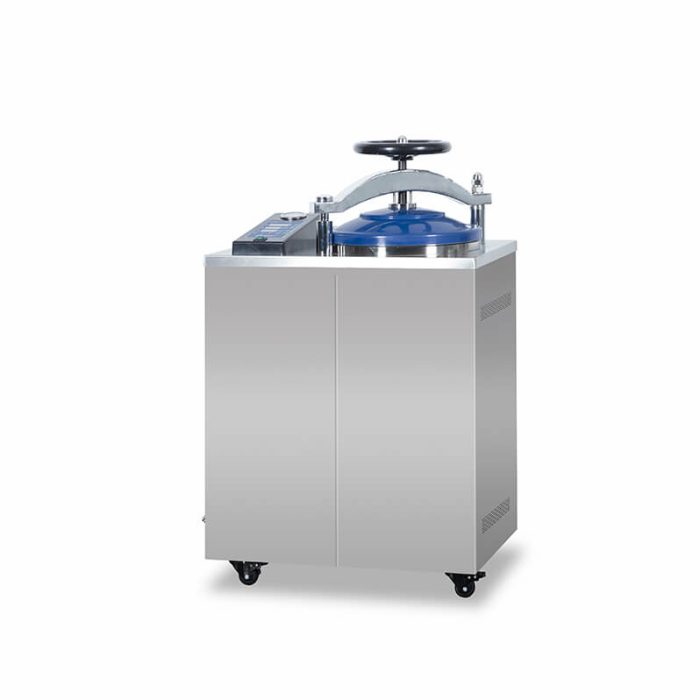

75L Vertical Steam Sterilization Uzzdgl-75X

Features:

1. Hand wheel translation and quick opening structure
2. Internal steam cycle
3. High-quality stainless steel material
4. With drying function
5. Microcomputer automatic control, arbitrary setting of sterilization parameters
6. Safety interlocking device
7. Digital display and Touch buttons
8. Standard test interface
9. Self-expanding seal
10. With automatic protection function: over temperature protection, overpressure self-discharge protection, low water level protection, anti-dry burning
11. With stainless steel bucket or basket
12. Buzzer reminder after sterilization, automatic stop
13. Automatic discharge of cold air, mechanical steam exhaust after sterilization*Optional external printer

Technical parameters:

1.Volume and Power:

• DGL-35X: 35LVolume &3.5kw Power
• DGL-50X:50L Volume&3.5kw
• DGL-75X:75L Volume&4.5kw
• DGL-100X: 100LVolume&4.5kw

2. Maximum work stress:0.22MPa

3. Voltage: AC220V50HZ

4. Sterile temperature regulation range:50℃~134℃

5. Time range for sterilization:4-120minute

6. Dry time range:0-240minute

Packing Details:

1. Packing Size:

• DGL-35X: 790*610*1130mm
• DGL-50X:800*600*1230mm
• DGL-75X:840*610*1310mm
• DGL-100X: 870*650*1380mm

2. Gross Weight/Net Weight:

• DGL-35X: 125/110KG
• DGL-50X:130/112KG
• DGL-75X: 145/114KG
• DGL-100X:156/129KG
