Features
- The appearance structure is simple and elegant, and the design is reasonable.

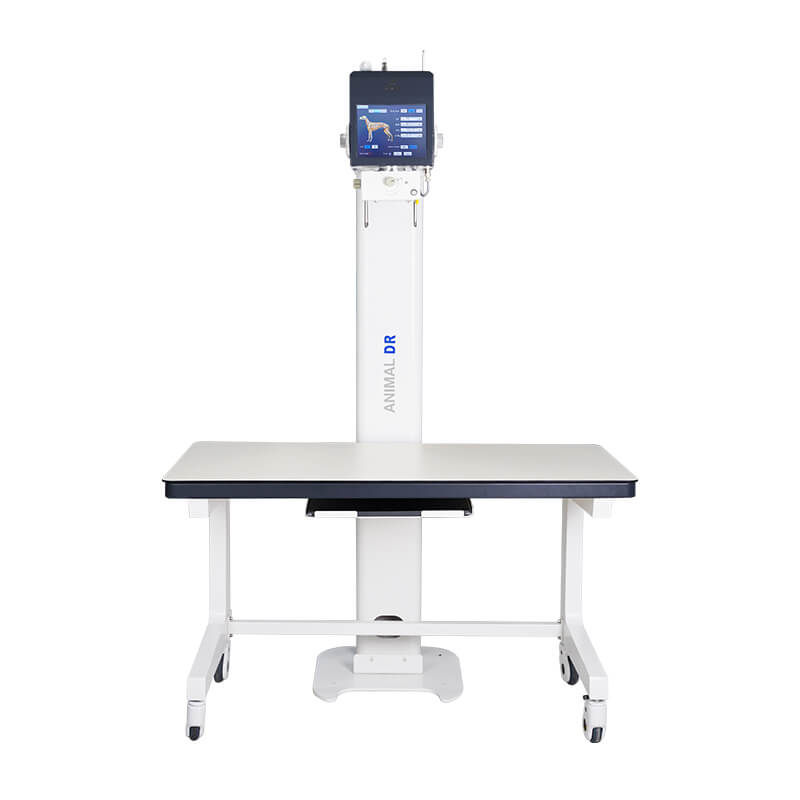

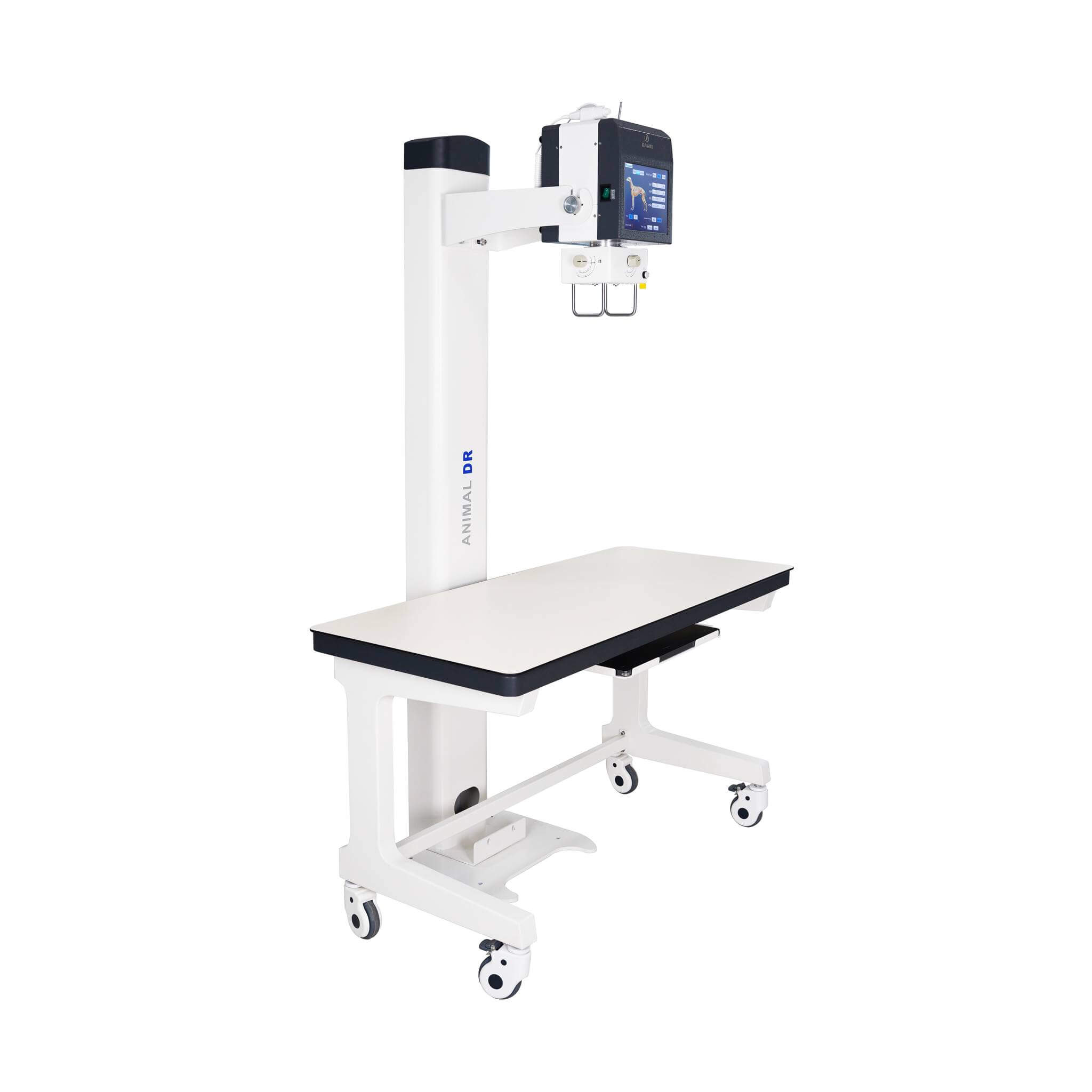

- Simple photography bed, easy to move.

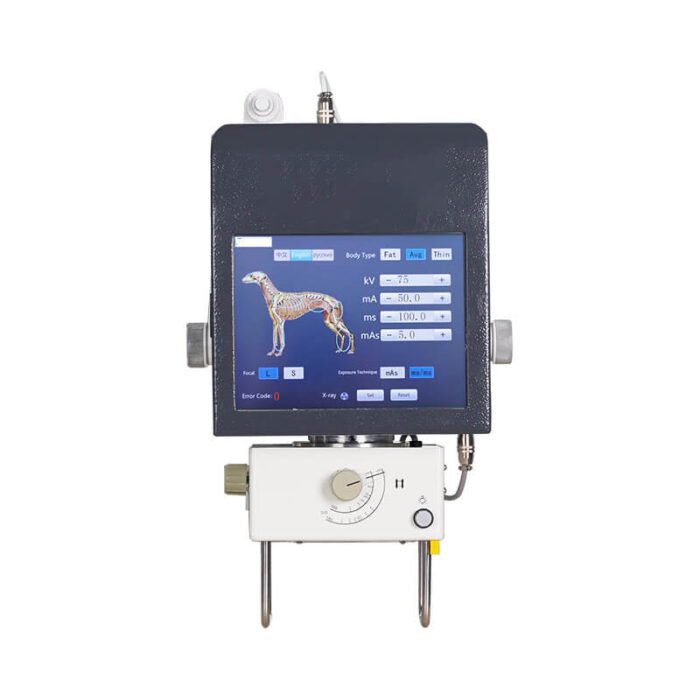

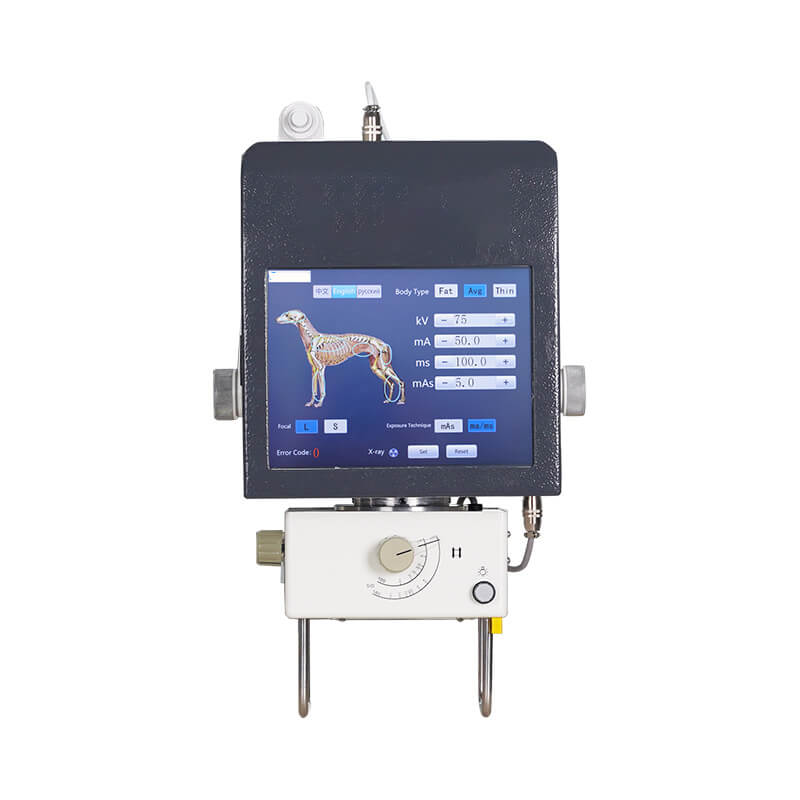

- Ergonomically designed control panel with 9.7-inch touch LCD screen.
- It has a wider scope of application and can shoot all kinds of animals. The kV range is 40~125, and the mA range is 10~100, with sufficient penetration and exposure.
- Combine powerful software processing capabilities to a chieve clear and stable images while reducing radiation dose.
- The system is simple and easy to operate and can present high-quality X-ray images instantly.
- It requires minimal space and can be installed within one day.
- With a complete product upgrade plan, customers can choose according to their own needs.
Flat panel detector
- Detector Technology: Amorphous Silicon
- Scintillator: Csl
- Dimensions: 430mmx430mm
- Number of Pixels: 3072 x 3072
- Pixel Pitch: 139 um
- AD Conversion: 16-bit
- Image Acquisition Time:3s

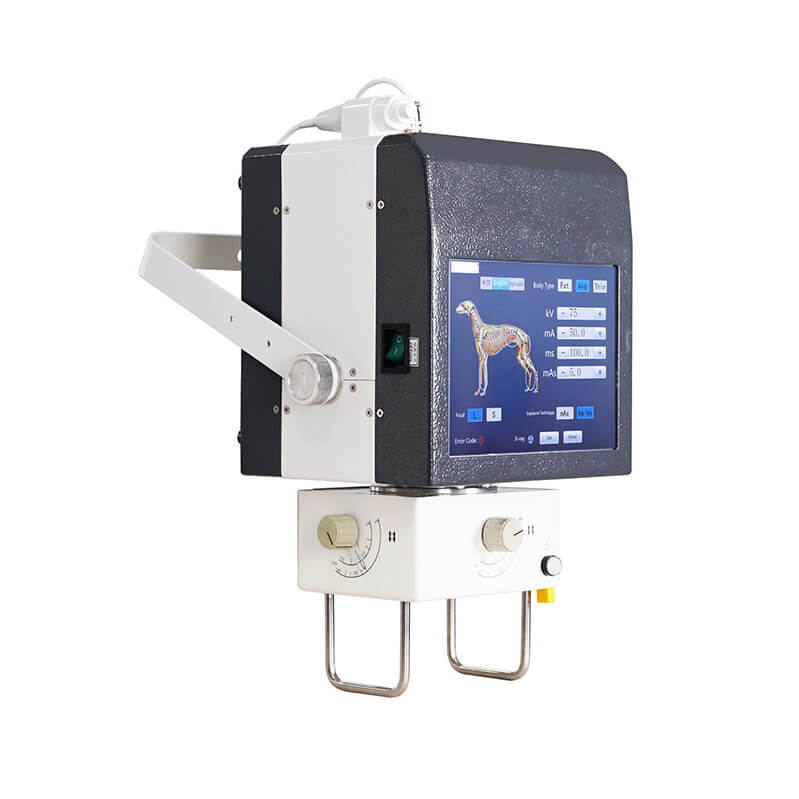

Tube assembly
- Output Power: 5.3kW
- Rated Voltage: 220VAC, ‡10%,50/60Hz
- Inverter Frequency: 100kHz,+/- 5%
- KV Range: 40kV~125kV
- mA Range: 10-100mA
- ms Range: 1-4000ms
- mAs Range: 0.1-200mAs
- Focus size: 0.6-1.8
