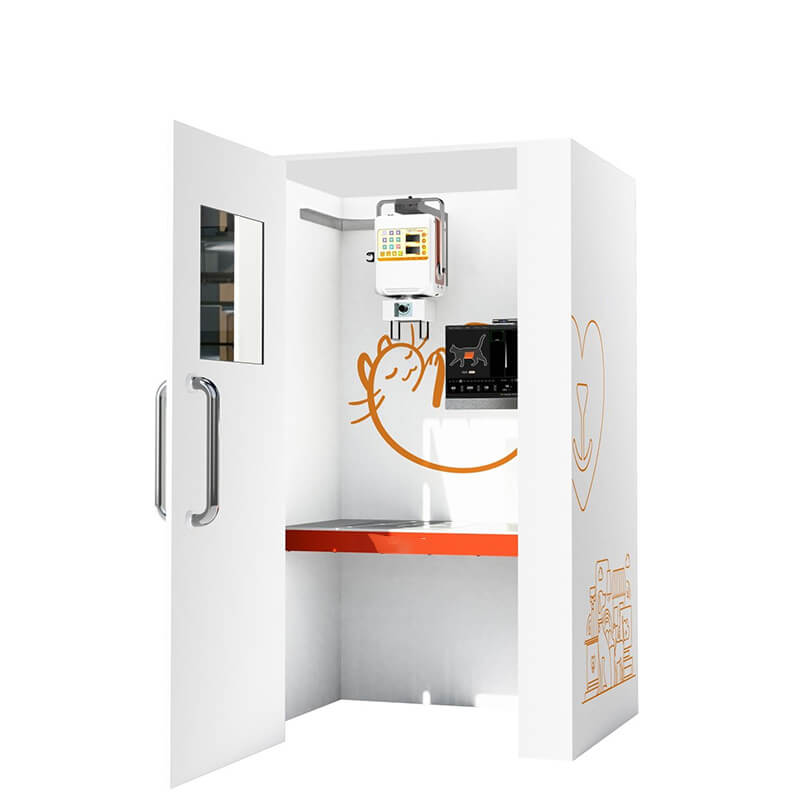

Cat Digital X-Ray Machine Uzzdbc-004

Technical Parameter:

1.Flat panel detector（4343SA）:

• Pixel Pitch 140μm
• Number of Pixels 3072×3072
• Imaging time ≤3S
• Weight ≤4.0K

2. Length*Width*Height: 1200×2400×2200mm

3. High voltage generator:

• Output Power 5.3kW
• kV range:40-125kV
• mA range:10-100mA

4.X-ray tube (KL10-0.6/1.8-125):

• Nominal Focal Spot Value 0.6/1.8mm
• Anode Heat Content 42kHU

5. Protective room and Table:

• Method Removable
• Table width 650mm
• Table height 750mm (From the table to the ground）

6. Require small area, movable, and ready-to-use anti-radiation shielding with compact laminate pet bed
