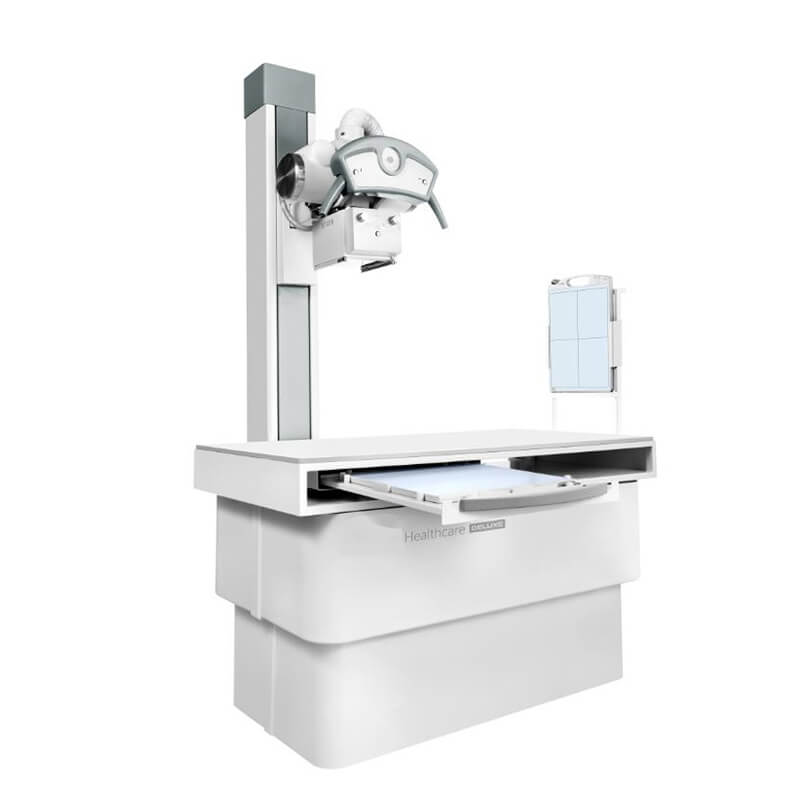

Deluxe Pet DR System Uzzdbc-005

Technical Parameter:

1.Length*Width*Height:1400mm×965mm×1950mm
2.Flat panel detector（Mars1717V wireless）:

• Scintillator Csl & a-Si
• Pixel Pitch 139μm
• Active Area 430×430mm
• Number of Pixels 3072×3072

3. High voltage generator:

• Output Power:32kW
• Maximum kV:150kV
• Maximum mA:320mA

4. X-ray tube (TOSHIBA E7876X):

• Nominal Focal Spot Value 0.6/1.2mm
• Anode Heat Content 230kHU

5. Table:

• Material carbon fiber
• Vertical SID 0.3m-1m
• Horizontal SID 0.3m-1.1m

6. Fixed grid:

• Brand: JPI
• Grid ratio:8:1
• Grid density:40Lp/cm
• Grid focal length:100cm

7. Displayer: 23.8 inches

8.Host: CPU G5420, Internal Storage≥4G, Hard Disk≥1T

9. High voltage Cable: 75kV/5m
