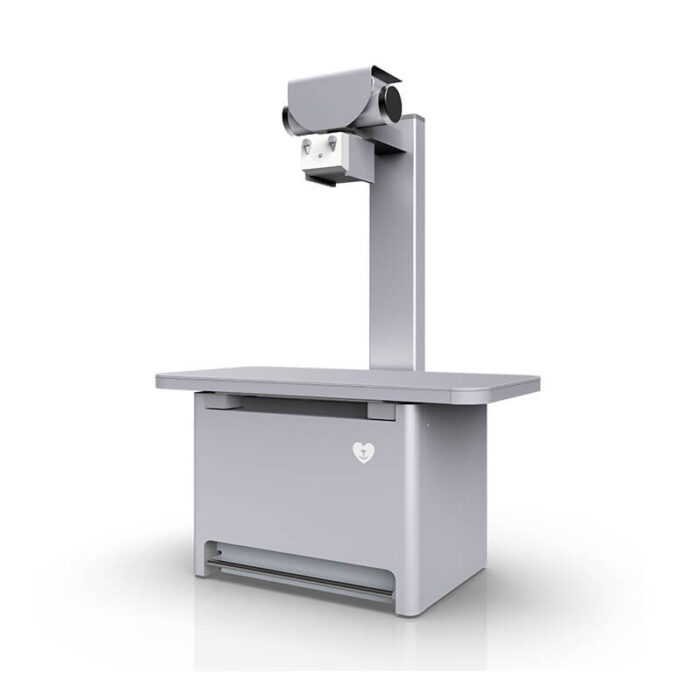

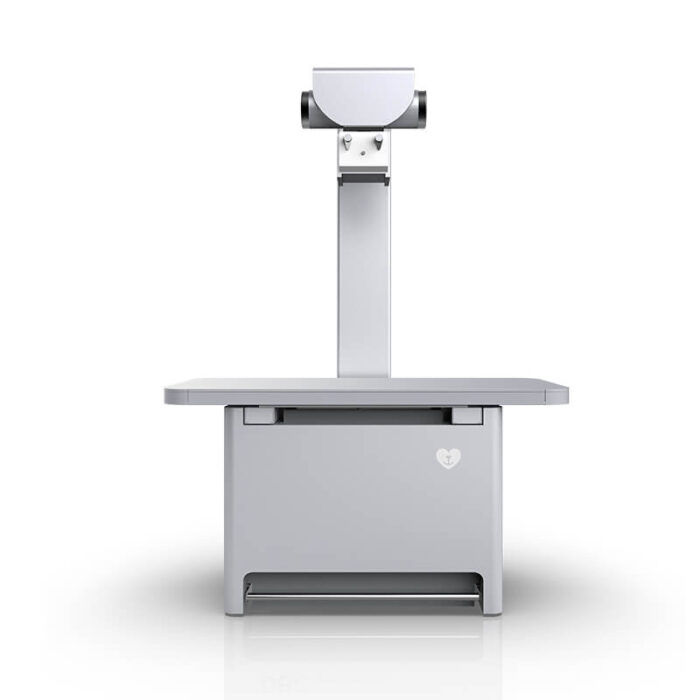

Desen X1 Animal DR Machine
Click to enlarge
Desen X1 Animal DR Machine
pet ct scanner
Monet 64 plus CT Scanner Uzzdbc-001
Back to products
Cat Digital X-Ray Machine
Cat Digital X-Ray Machine Uzzdbc-004

Desen X1 Animal DR Machine Uzzdbc-003

Get A Quotation
Compare
SKU: Uzzdbc-003 Categories: , ,
Description

Technical Parameter:

  1. Length*Width*Height: 1400mm*900mm*1920mm
  2. Flat panel detector: 1)Scintillator Csl & a-Si;2) Pixel Pitch 140μm;3)Number of Pixels :3072×3072; 4)Active Area 17″×17″inches ( 427×427mm)
  3. High voltage generator: 1)Output Power :32kW; 2) Maximum kV :150kV ;3)Maximum mA :400mA
  4. X-ray tube (LQ16 XD57-20.40/125): 1)Nominal Focal Spot Value 0.6/1.2mm; 2)Anode Heat Content 150kHU
  5. Displayer: 23.8 inches
  6. High voltage Cable: 75kV/5m
