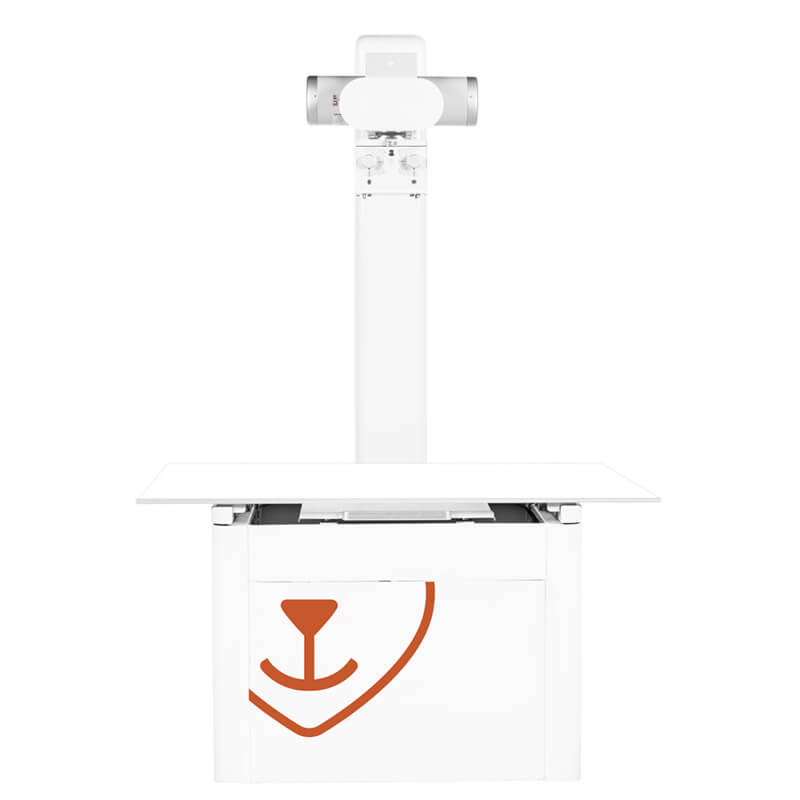

Numen Digital Veterinary X-Ray Equipment Uzzdbc-009

Technical Parameter:

1. Flat panel detector（Venu1717XK）:

• Scintillator Csl & a-Si
• Pixel Pitch 139 μm
• Number of Pixels 3072×3072
• Active Area 17″×17″ inches

2. High voltage generator:

• Output Power 40kW
• Maximum kV 133kV
• Maximum mA 500mA

3. X-ray tube (MWHX7620A-U):

• Nominal Focal Spot Value 0.6/1.2mm
• Anode Heat Content 300kHU

4. Table：

• Board of Table Four-way, movable bed
• Fixed grid :

Brand: JPI
Grid ratio:8:1
Grid density:40Lp/cm
Grid focal length:100cm

5.Displayer:19 inches

6.Host:CPU≥2G, Internal Storage≥4G, Hard Disk≥500G

7. High voltage Cable: 75kV/5m
