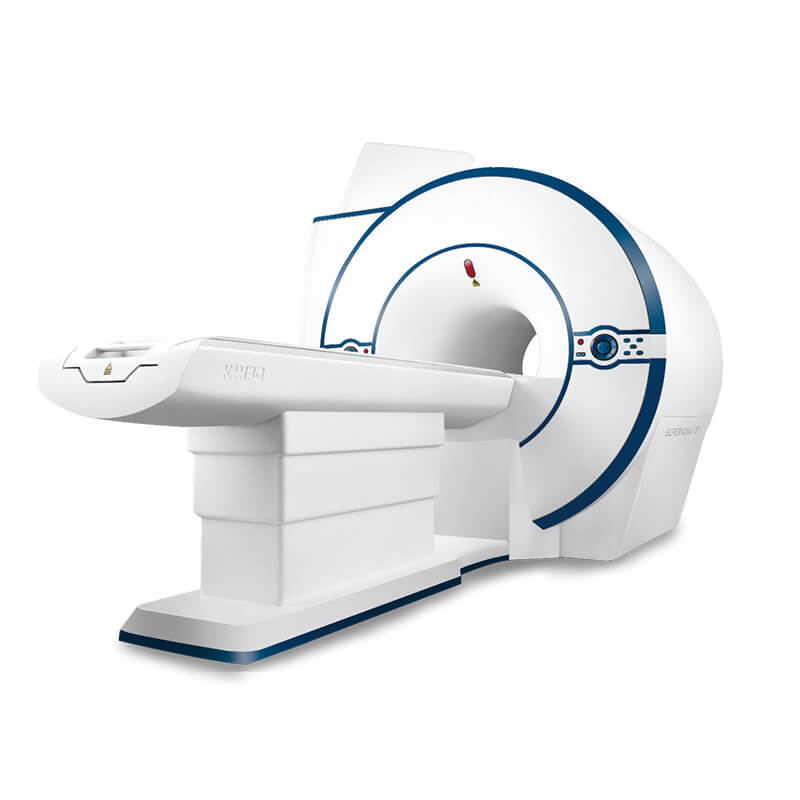

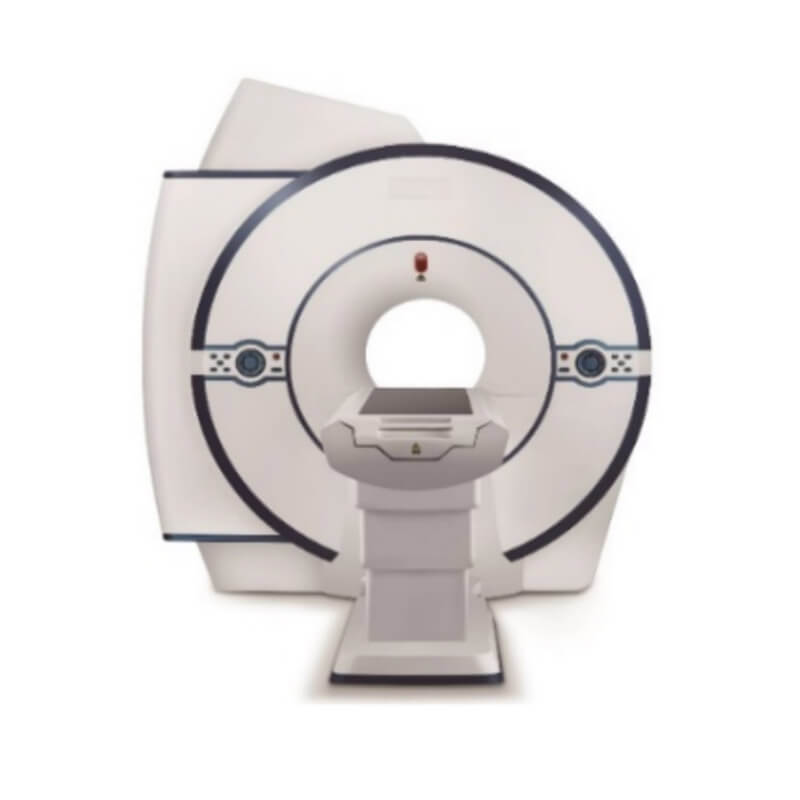

Pet-Specific 1.5T MRI System Uzzdbc-012( Van Gogh )

Technical Parameter:

1. Magnet:

• Magnet Field strength 1.5 T
• Homogeneity ＜10 ppm(peak-peak) in 45cm DSV (The first-order shimming of the magnetic plate and the gradient coil can be matched with the second-order shimming of the gradient coil)
• 5GS line <4.5m
• Patient Gap(Diameter) 600mm
• Magnet Size 1580mm*1996mm*2400mm(Length, width and height)
• Magnet weight 4.3 tons
• Liquid helium capacity 800L(Zero loss of liquid helium)

2. Gradient amplifier

• Load voltage: 800V, Max current: 600A

3. TX coil: Plate-type QD TX coil

4. RX coil:

• PA Multifunctional Flexible Coil
• PA Body Flexible Coil
• PA Head and Body Toroidal Coil

5. RF amplifier: 18 kW

6. Scan control unit (Spectrometer):16-channel receive

7. Computer system: LCD Monitor and DICOM 3.0 printer interface(Can be remotely)

8. Operation software: Van Gogh Series R2 Software Package

9. Electric Examination Bed: Including bed, encoder, horizontal motor, vertical motor

10. Operation console (table):

• Load capacity:200Kg
• Length: 2800±5 mm
• Width: 610±2 mm
