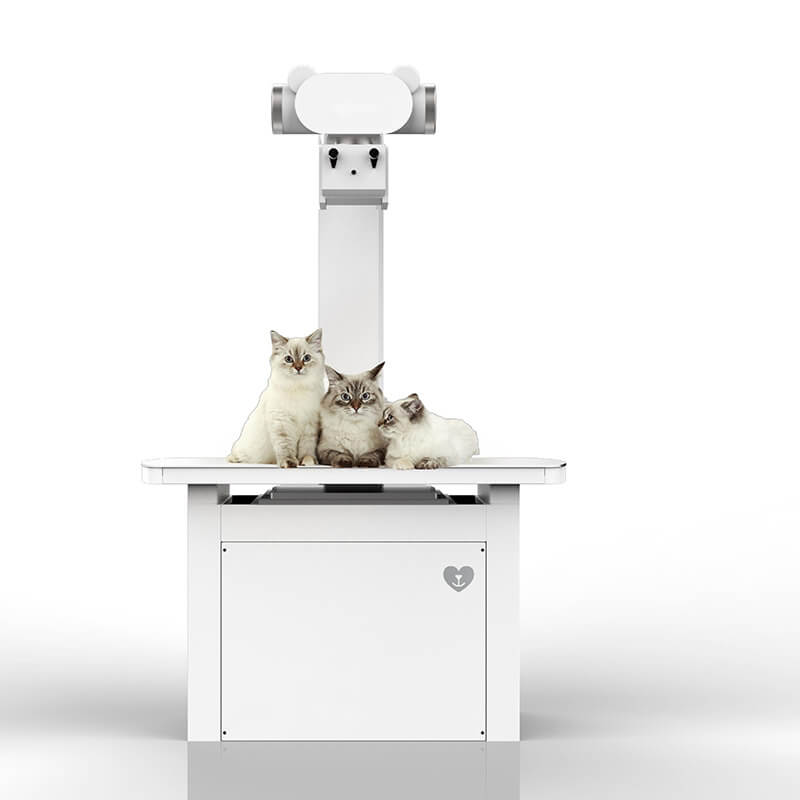

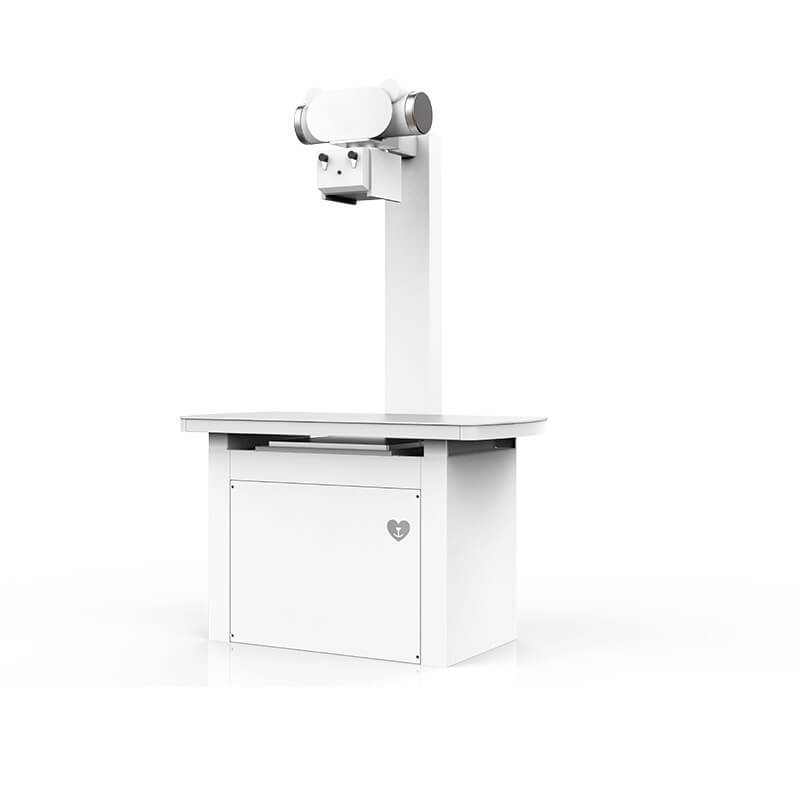

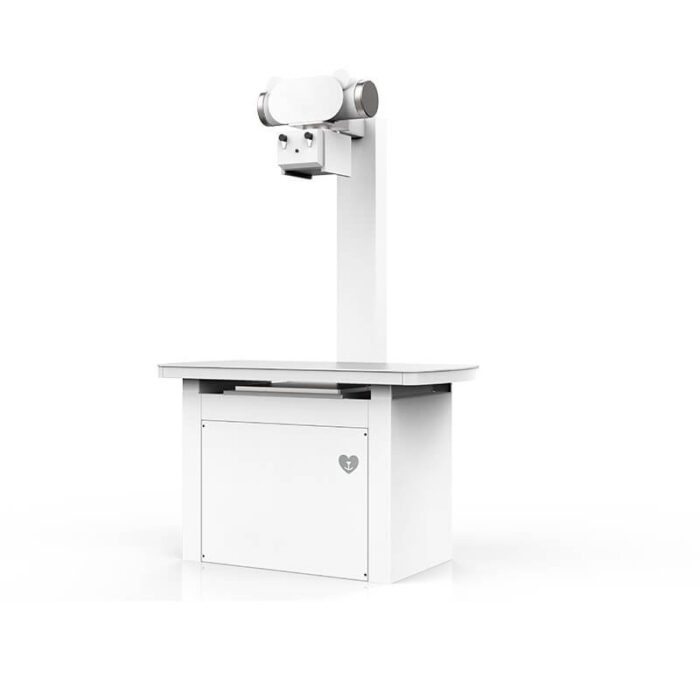

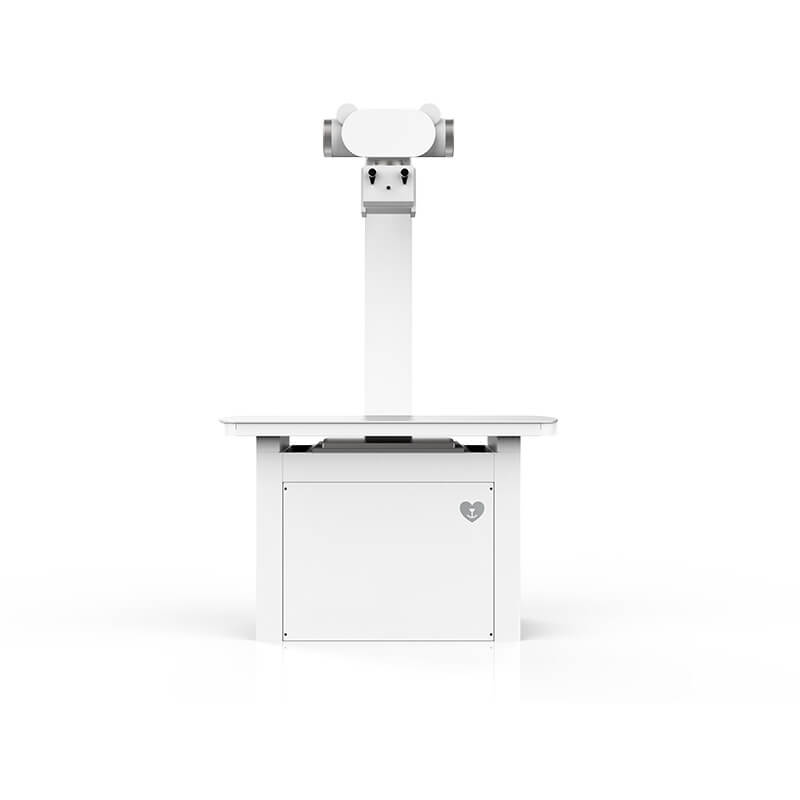

Pets Digital X-Ray Machine
Click to enlarge
Pets Digital X-Ray Machine
Numen Digital Veterinary X-Ray Equipment
Numen Digital Veterinary X-Ray Equipment Uzzdbc-009
Back to products
Vigor Advanced Animal DR System
Vigor Advanced Animal DR System Uzzdbc-011

Pets Digital X-Ray Machine Uzzdbc-010

Get A Quotation
Compare
SKU: Uzzdbc-010 Categories: , ,
Description

Technical Parameter:

1.Flat panel detector（Venu 1717XV）:

  • Scintillator Csl & a-Si
  • Pixel Pitch 139μm
  • Number of Pixels 2912×2912
  • Active Area 17″×17″inches ( 427×427mm)

2. High voltage generator:

  • Output Power 32kW
  • Maximum kV 150kV
  • Maximum mA 400mA

3. X-ray tube (DBC- 20 40/125):

  • Nominal Focal Spot Value 1.0/2.0mm
  • Anode Heat Content 140kHU

4. Table: Board of Table: Fixed, HPL

5. Displayer 23.8 inches

6.Host: CPU≥2G, Internal Storage≥4G, Hard Disk≥1T

7. High voltage Cable: 75kV/5m
