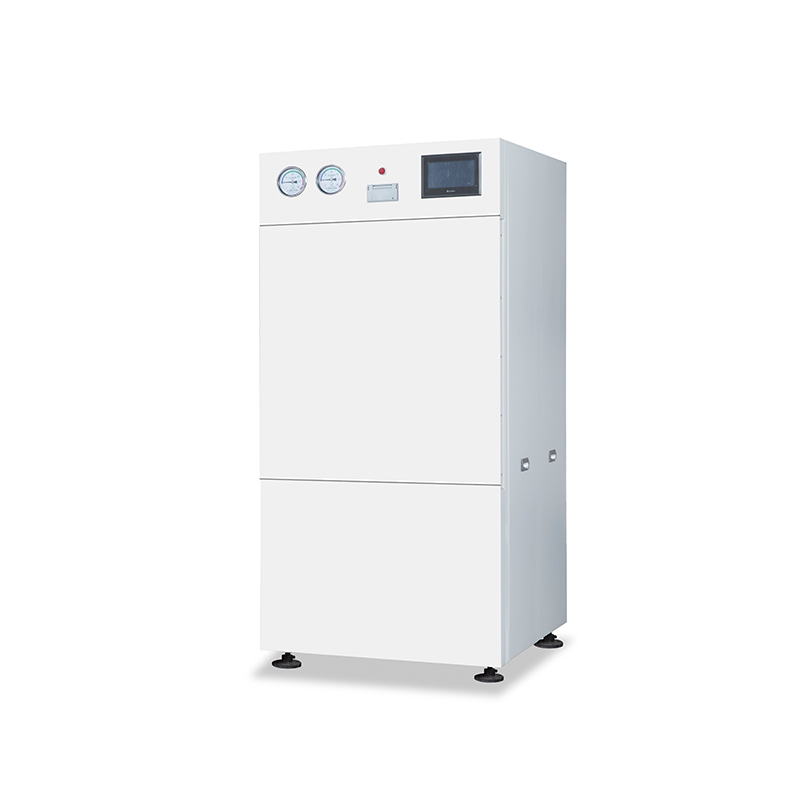

Pulsating Vacuum Sterilizer WY-150DM

Features:

1. Horizontal circular inner chamber + jacket structure, safety, heat preservation, and drying function
2. Disc type embedded gear + Electric lock door structure, safety and reliable
3. Door seals are pneumatic or self-expanding
4. Equipped with standard equipment verification interface
5. Pipeline system for the optimal design, SUS304 pipeline, clamp structure, quick assembly
6. Control system: HMI man-machine interface, touch screen + microcomputer
7. F0 value and temperature time double guarantee sterilization effect, with perfect sterilization records
8. With program selection, parameter setting, equipment operation, report processing and traceability Functions
9. Multiple safety protection(over-temperature,over-pressure protect)
10. Sterilization process: fabric, equipment, liquid, BD, pressure testing, custom-defined multiple procedures

Technical parameters:

1. Design pressure: -0.1~0.3Mpa
2. Working pressure:0.245Mpa
3. Vacuum:-0.086Mpa
4. Water pressure:0.1-0.2Mpa
5. Steam Pressure: 0.3~0.7Mpa
6. Design temperature:144℃
7. Working Temperature:105~138℃
8. Compressed air pressure:0.4~0.7Mpa
9. Power Voltage: Three-phase five-wire AC 380V 50Hz

Packing Details:

1. Overall Dimension(L*W*H) (mm): 1288×690×1600mm
2. Chamber Dimension(L*W*H) (mm): Φ472×890mm
3. Packing size:1400×790×1850mm
4. Gross weight/Net weight (kg): 600kgs/450kgs
