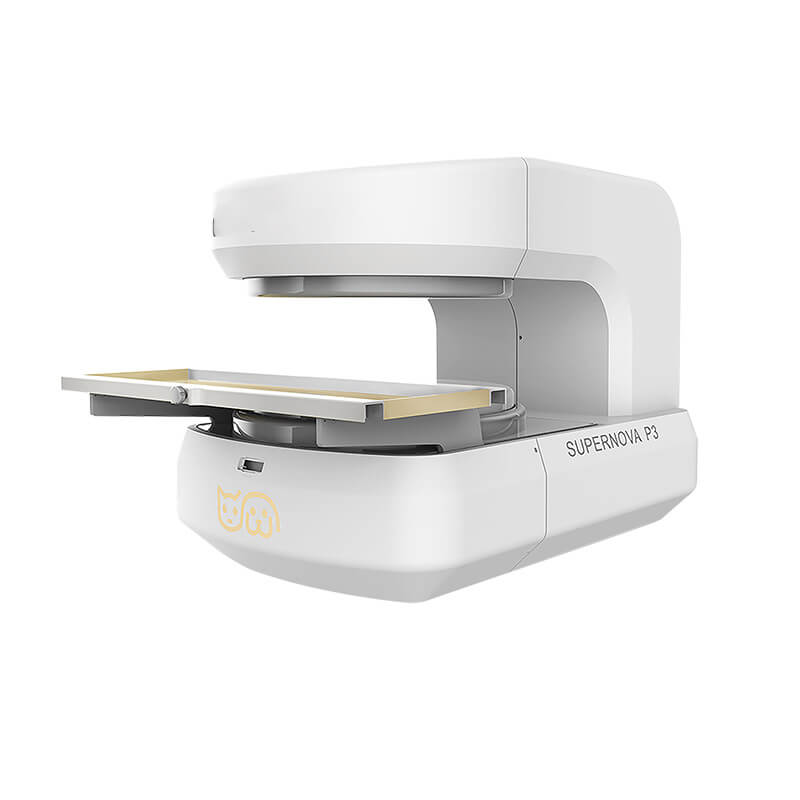

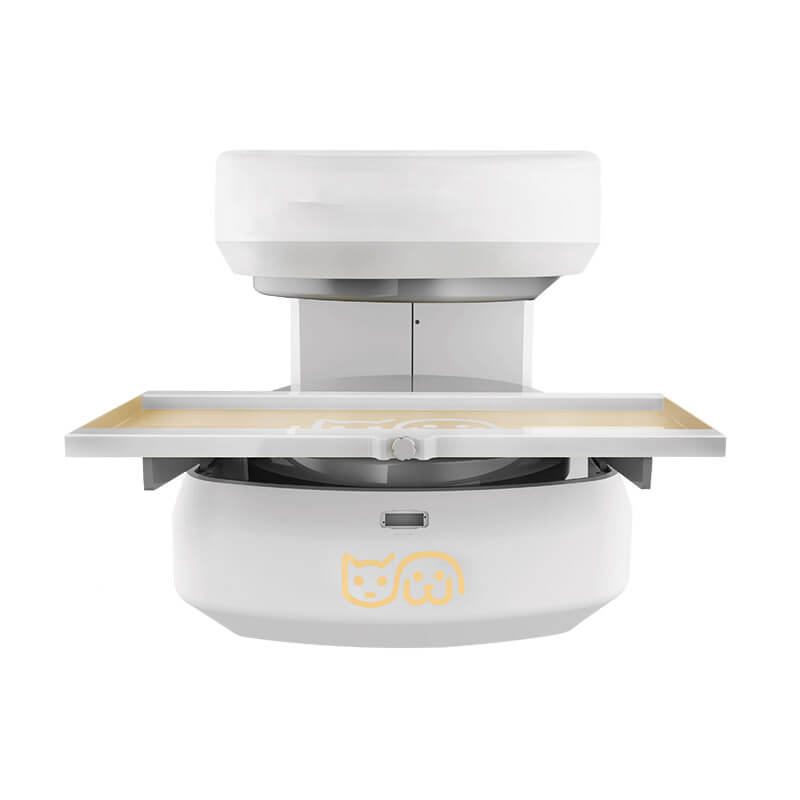

Technical Parameter:
1. Magnet:
- Magnet Field strength 0.3 T
- Homogeneity <35 ppm(peak-peak) in 30cm DSV (Shimming of magnetic plates and first-order shimming of gradient coils)
- 5GS line <1.65m
- Patient Gap(Cover to cover) 300mm in height
- Magnet Size 1595mm* 1000mm* 1262mm(Length*Width*Height)
- Magnet weight 5.8 tons
2. Gradient amplifier Load voltage: 300V, Max current: 250A 1
3. TX coil: Plate-type QD TX coil
4. RX coil:
- PA D11 pet coil
- PA D18 pet coil
- PA D24 pet coil
5. RF amplifier:6 kW
6. Scan control unit (Spectrometer):4-channel receive
7. Computer system: LCD Monitor and DICOM 3.0 printer interface(Can be remotely)
8. Operation software: Supernova Software Package
9. Manual Examination Bed:
- Load capacity 100Kg
- Overall length of bed: 1600 mm (with extension plate to 1900 mm)
