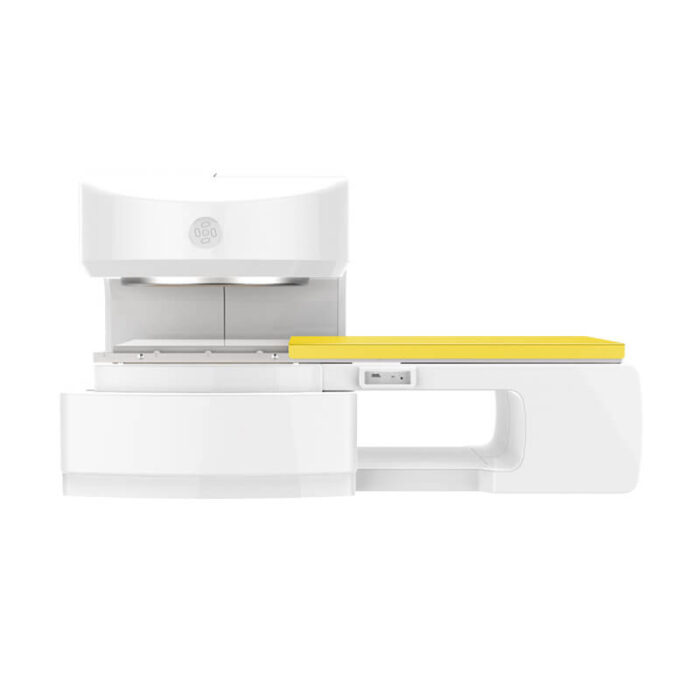

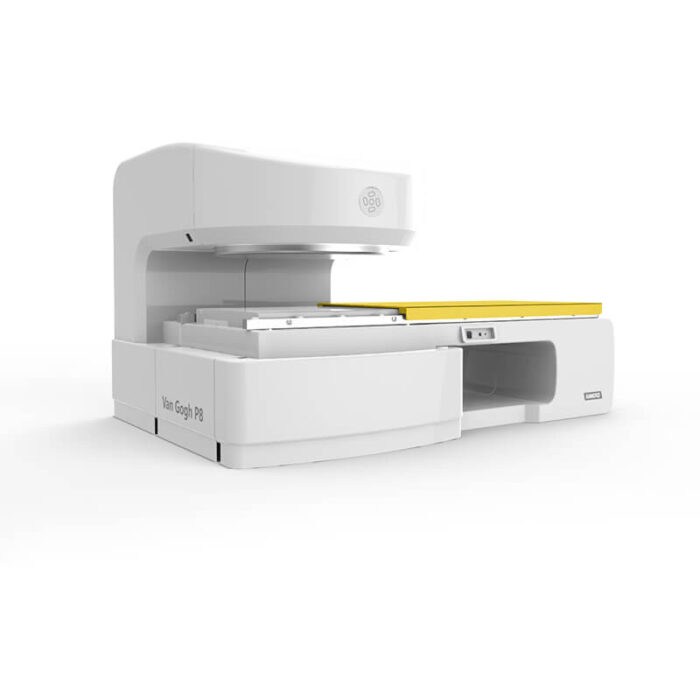

0.5T MRI System with the Laser Positioner Uzzdbc-016(Van Gogh P8)

Technical Parameter:

1. Magnet:

• Magnet Field strength 0.5 T
• Homogeneity ＜35 ppm(peak-peak) in 30cm DSV (Shimming of magnetic plates and first-order shimming of gradient coils)
• 5GS line < 2.3m
• Patient Gap(Cover to cover) 295mm in height
• Magnet Size 1750mm* 1200mm* 1650mm（Length*Width*Height）
• Magnet weight 14 tons

2. Gradient amplifier Load voltage: 300V, Max current: 250A 1
3. TX coil: Plate-type QD TX coil
4. RX coil：

• PA D11 pet coil
• PA D18 pet coil
• PA D20 Spinal coil

5. RF amplifier: 6 kW
6. Scan control unit (Spectrometer):6-channel receive
7. Computer system: LCD Monitor and DICOM 3.0 printer interface(Can be remotely)
8. Operation software: Supernova Software Package
9. Electric Examination Bed
10. Operation console (table): Load capacity 100 (Selection of maximum load-bearing 1200kg for professional horse bed)
11. Overall length of bed: 1750 mm (Optional professional horse bed length 2500mm)
