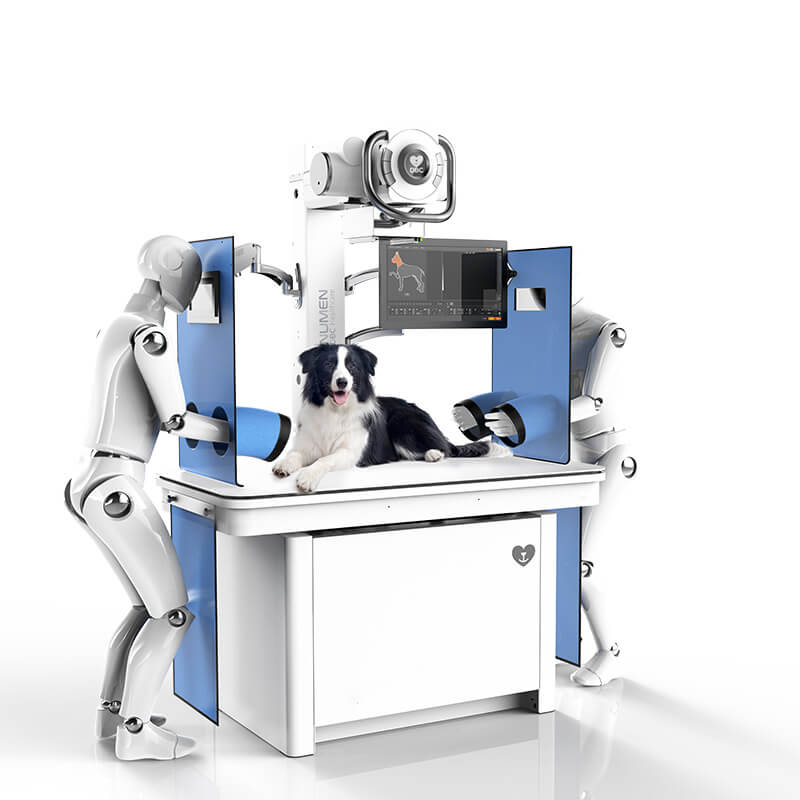

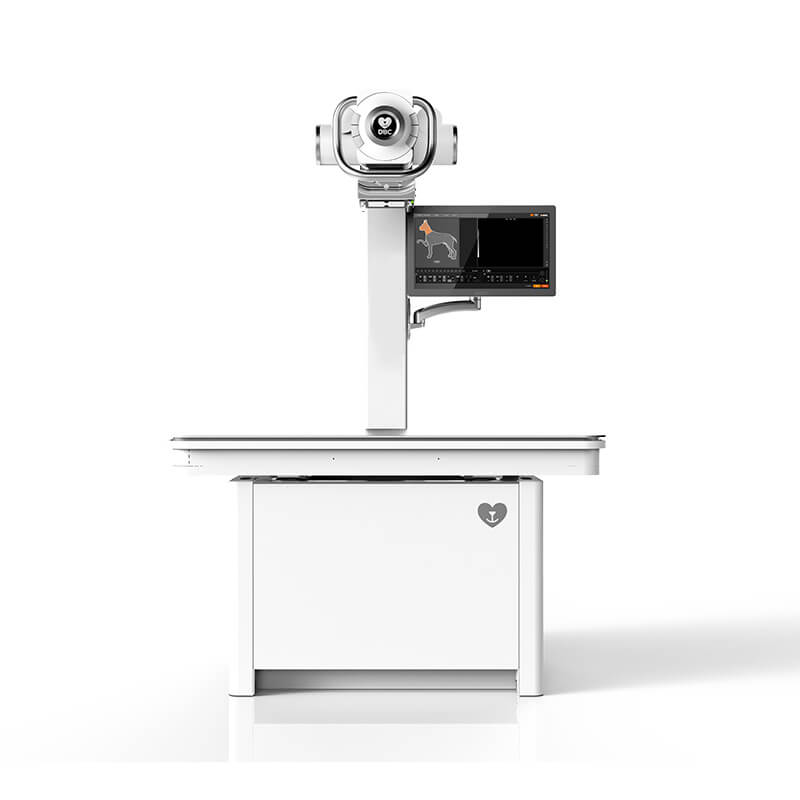

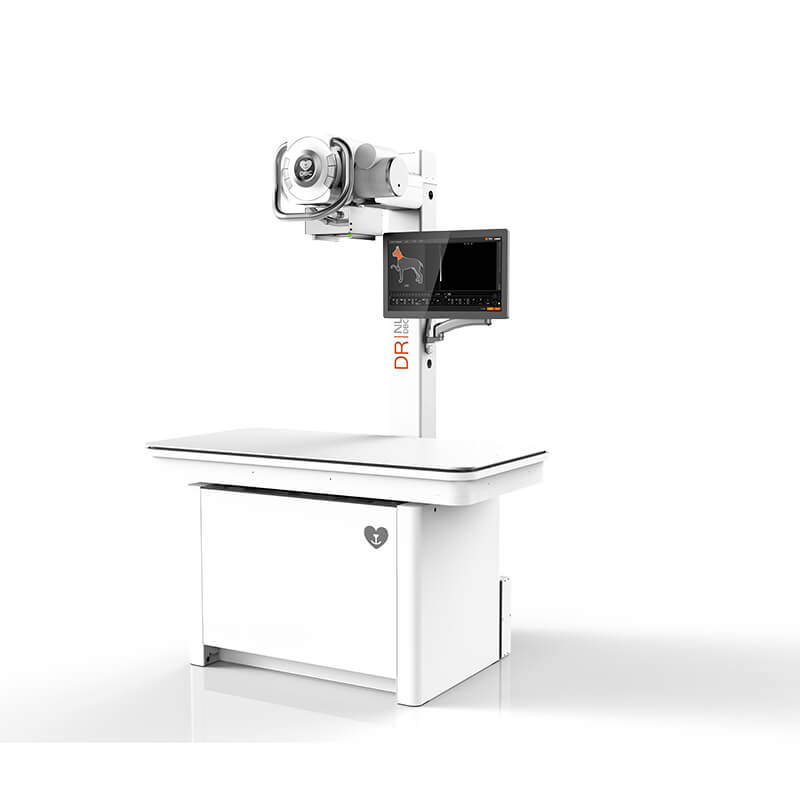

Veterinary DR X-Ray Machine Uzzdbc-008

Technical Parameter:

1.Flat panel detector（iRAY Mercu1717V3）:

• Scintillator Csl & a-Si
• Pixel Pitch 139μm
• Number of Pixels 3072×3072
• Active Area:5 fps (1×1 binning, 3072×3072, 427mmx427mmFOV)、20 fps (2×2 binning, 1536×1536, 427mmx427mmFOV)、30 fps(3×3 binning, 1024×1024, 427mmx427mmFOV)

2. High voltage generator:

• Output Power 32kW
• Maximum kV 150kV
• Maximum mA 400mA

3. X-ray tube (Siemens RAY-12T_1):

• Nominal Focal Spot Value 0.6/1.2mm
• Anode Heat Content 230kHU

4. Table:

• Board of Table CFRP
• Horizontal movement range of tube column and detector:430mm
• Rotation angle of the tube: ±90°
• SID range (tube lifting device):30-110cm
• Movement of the board: Four-way slideable

5. Displayer: 23.8 inches

6.Host: CPU≥2G, Internal Storage≥4G, Hard Disk≥1T

7. High voltage Cable: 75kV/5m
